12V 100Ah LiFePO4 Deep Cycle Battery with Bluetooth App Monitoring
- 1280Wh Deep-Cycle Power
Delivers 12.8V 100Ah / 1280Wh of stable energy for trolling motors, RV equipment, fish finders, livewells, pumps, marine electronics, solar storage, and off-grid power use. - Bluetooth App Monitoring
Monitor battery voltage, capacity, current, temperature, and operating status directly from your smartphone. - 100A Smart BMS Protection
Built-in 100A BMS helps protect against overcharge, over-discharge, over-current, short circuit, overheating, and low-temperature discharge conditions. - EV-Grade LiFePO4 Cells

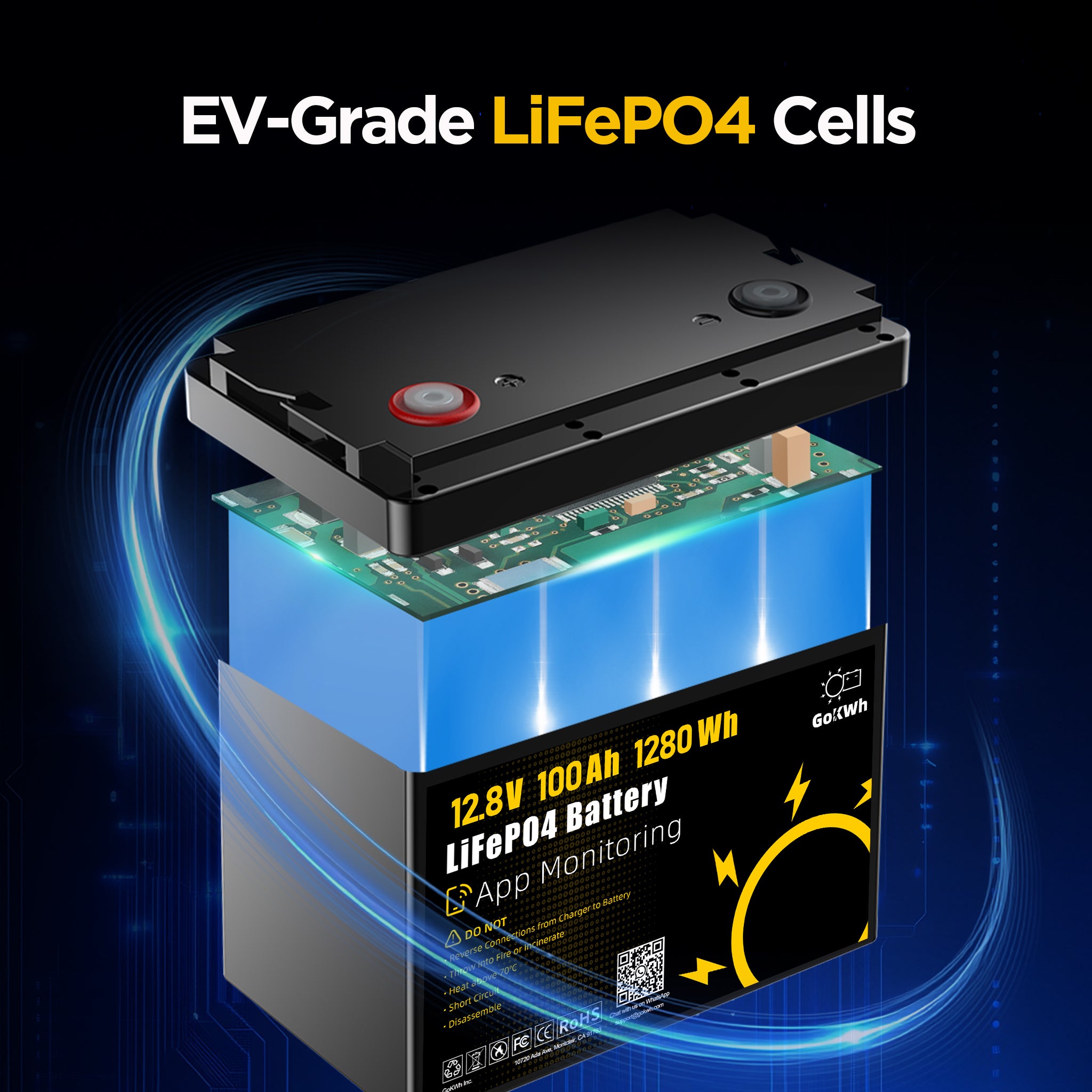

High-energy-density LiFePO4 cells provide a lighter, more compact, and longer-lasting upgrade from traditional AGM batteries.4000+
Free
Shipping
US
Warehouse
5-Year
Warranty
24/7
Support
Real Setup Real Deep-Cycle Power
Get a quick look at the installation, connection, Bluetooth monitoring, and real-world deep-cycle performance of this 12V 320Ah LiFePO4 battery.

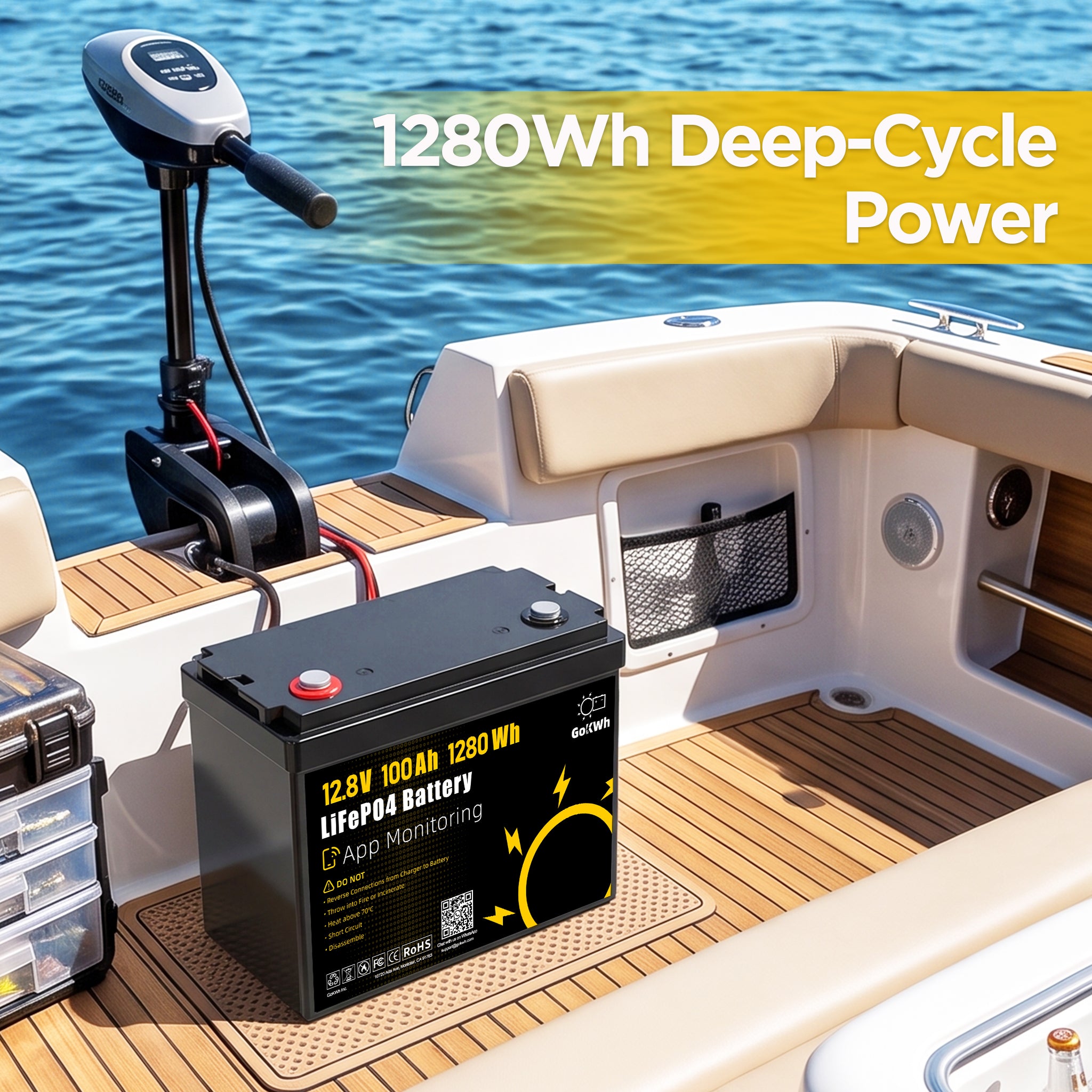

1280Wh Deep-Cycle Power
Delivers stable 12.8V 100Ah energy for trolling motors, RV equipment, fish finders, livewells, pumps, marine electronics, and compact solar systems.
Check Battery Status from Your Phone
Check battery voltage, capacity, current, temperature, and operating status directly from your smartphone.
100A Smart BMS Protection
Built-in BMS helps protect against overcharge, over-discharge, over-current, short circuit, overheating, and low-temperature discharge conditions.

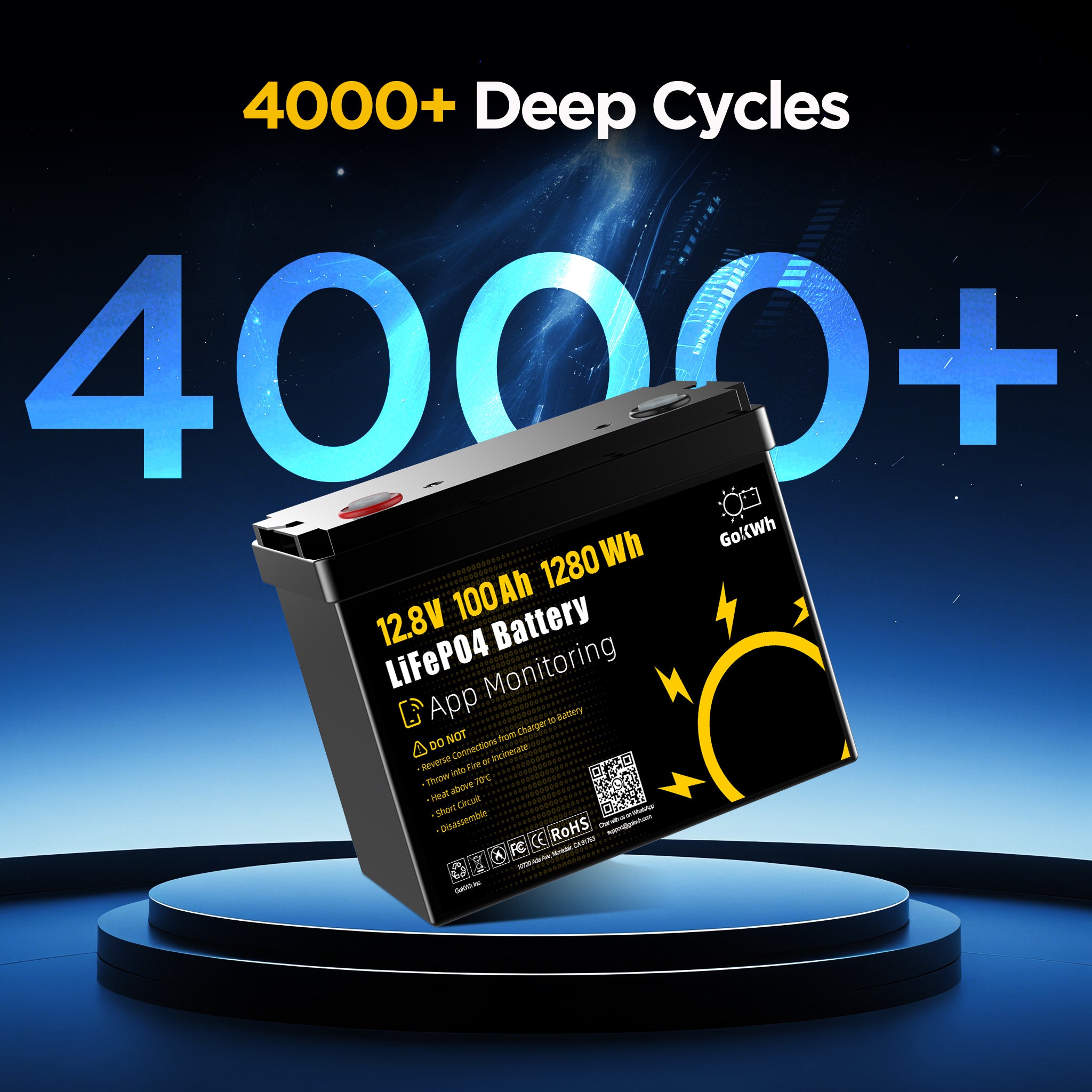

4000+ Deep Cycles
Built for dependable long-term use with stable deep-cycle performance season after season.
Low-Temperature Discharge Protection
Charging stops below 32°F / 0°C and resumes at 41°F / 5°C, with discharge protection below -4°F / -20°C.
Power for Multiple Deep-Cycle Uses
A compact 12V 100Ah LiFePO4 battery built for trolling motors, RV systems, marine electronics, solar storage, off-grid setups, and backup power.
| Cell Type: | LiFePO4 |
| Warranty: | 5 Years |
| Cycle Life: | ≥4000 Cycles |
| Nominal Voltage: | 12.8V |
| Rated Capacity: | 100Ah |
| Energy: | 1280Wh |
| Max. Expansion (Parallel & Series): | 4P4S |
| Internal Resistance: | ≤30mΩ |
| Certifications: | UL2743, FCC |
| Bluetooth: | ✓ |
| Self-Heating: | / |
| BMS: | 100A |
| Max. Continuous Output Power: | 1280W |
| Max. Continuous Charge Current: | 100A |
| Max. Continuous Discharge Current: | 100A |
| Max. Discharge Current 1 Second: | 400A |
| Max. Discharge Current 30 Seconds: | 280A |
| Charge Method: | CC/CV |
| Charge Voltage: | 14.4V ± 0.2V |
| Charge Temperature: | 0°C to 45°C / 32°F to 113°F |
| Discharge Temperature: | -20°C to 60°C / -4°F to 140°F |
| Storage Temperature: | -10°C to 45°C / 14°F to 113°F |
| Low-Temperature Protection: | √ |
| Automatic Discharge Off: | <-4°F / -20°C |
| Automatic Charge Off: | <32°F / 0°C |
| Automatic Charging Recovery: | ≥41°F / 5°C |
| Terminals: | M8 Bolts |
| Weight Approx.: | 22.05 lbs |
| Size: | L10.24 × W6.69 × H8.27 in |
| Housing Material: | ABS |
| Protection Class: | IP65 |
FAQ
What is this 12V 100Ah LiFePO4 battery designed for?
This battery is designed for deep-cycle power applications, including trolling motors, RV systems, marine electronics, solar storage, off-grid setups, and backup power. It is built for continuous power output, not engine starting.
Is this battery only for marine use?
No. While it works well for trolling motors and marine electronics, it can also be used for RV power systems, compact solar storage, off-grid applications, and backup power setups.
What charger should I use?
Please use a LiFePO4-compatible charger. For a 12V LiFePO4 battery, a 14.6V charger is commonly used. Always follow the recommended charging parameters in the product manual.
How many batteries can I connect together?
This battery supports up to 4P4S connection, allowing expansion for 12V, 24V, 36V, or 48V systems when properly configured.
Is this battery a starting battery?
No. This LiFePO4 battery is designed for deep-cycle energy storage applications such as RVs, marine use, solar systems, off-grid setups, and backup power. It is not intended to be used as an engine starting battery.
Will it fit in a standard battery box?
This battery has a compact footprint of 10.24 × 6.69 × 8.27 inches and weighs about 22.05 lb. Battery box sizes may vary, so please confirm your box’s internal length, width, and height before installation, and leave enough space for terminals and cable connections.
